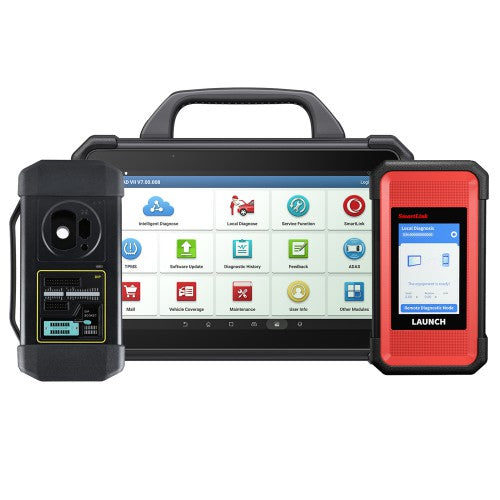

LAUNCH X431 PAD 7 & X-PROG3 Diagnostic Tool + Key Programmer

The professional Launch X-431 PAD VII is the latest generation of the highest-end model in the X-431 series, with the maximum number of functions available today. It also comes with the X-PROG3 key programmer.

The main device is made in the form of a rugged tablet (IP65 protection level) on the Android operating system, it has an eight-core processor with a clock frequency of 2.0 GHz, a large screen (13.3 inches), 8 GB of RAM, a powerful 71.1Wh ( ≈19000mAh ) battery . X-431 PAD VII has a new design, a convenient carrying handle, a rear mount and a stand, an updated diagnostic menu with intelligent vehicle detection and scanning of all systems, diagnostic history and vehicle data storage, quick access to service functions, a built-in professional database, remote diagnostics via another X-431 or the new Smartlink platform, a feedback function, a section with available accessories, an overview of the vehicle's coverage area, etc.

The devices can be retrofitted with optional modules and accessories such as the Scopebox 4-channel oscilloscope, the Sensorbox multimeter and signal simulation, the video scope endoscope camera, the HD-Pack kit for truck diagnostics, the TSGUN for working with the TPMS system, the immobilizer programmer and the X-431 ADAS stand for calibrating car sensors, cameras and adaptive cruise control radars.

X-431 PAD VII is equipped with a new, improved Smartlink wireless diagnostic adapter that supports next-generation communication protocols, including DoIP and CAN-FD , with functions for reading and erasing trouble codes ( DTCs ), viewing real-time data, testing and activating actuators, coding, customizing, online programming and flashing, as well as the ability to work with specialized software at the dealer level thanks to full support for the J2534 Pass-Thru protocol. X-431 PAD VII devices provide complete coverage with maximum functions for American, Asian and European vehicles with stable and accurate diagnostic data.

Features:

- Warranty and technical support from an official representative
- Licensed software with future updates and subscriptions
- Always the most recent and up-to-date diagnostic data
- Built-in help, database and diagnostic tips
- The best among analogues in this class
- Extended software configuration with new design and user-friendly menu
- Powerful and durable IP65 Android tablet
- Supports all professional features with built-in help
- Diagnostics of all possible electronic ( ECU ) systems
- Wide coverage with more than 120 brands (American, European, Asian), from the 1980s to the present day
- Ability to perform remote diagnostics with another compatible Launch scanner
- Super remote diagnostics using the new Smartlink platform
- Upgrade with additional modules and accessories: Scopebox 4-channel oscilloscope, Sensorbox multimeter and signal simulation, immobilizer programmer, TSGUN for working with TPMS system, Videoscope endoscope camera and HD-Pack set for freight diagnostics
- Addition of an additional X-431 ADAS base for calibrating adaptive cruise control car sensors, cameras and radars
- Intelligent diagnostics with automatic detection and vehicle scanning
- Car maintenance history and diagnostics record
- The set includes the most common old type adapters BMW-20pin, MB-14 and MB-38pin
- Software update via the Internet with one click
- Search for more information on the Internet and the built-in (google) translator for error codes
- Access to a professional database with repair information, wiring diagrams and other information
- New generation Smartlink wireless adapter with new capabilities including DoIP, CAN-FD and J2534 Pass-Thru support, providing up to 10 times faster operation and communication
- Support for many languages, including English, Russian, German and many others


Diagnostic functions:

- Intelligent diagnostics with automatic vehicle recognition
- diagnostics of all systems ( ECU )
- Reading system information (VIN code, part number, software version and more)
- reading fault codes with definition ( DTC )
- erasing fault codes ( DTC )
- Built-in search for additional information and translation of error codes on the Internet
- View current data in digital and graphical form
- Checking the actuators (testing - activation).
- Customization, coding
- Online programming
- Reset maintenance intervals
- Other special features
- Database and built-in online help
- Saving and printing test results (diagnostic data)
- Other features

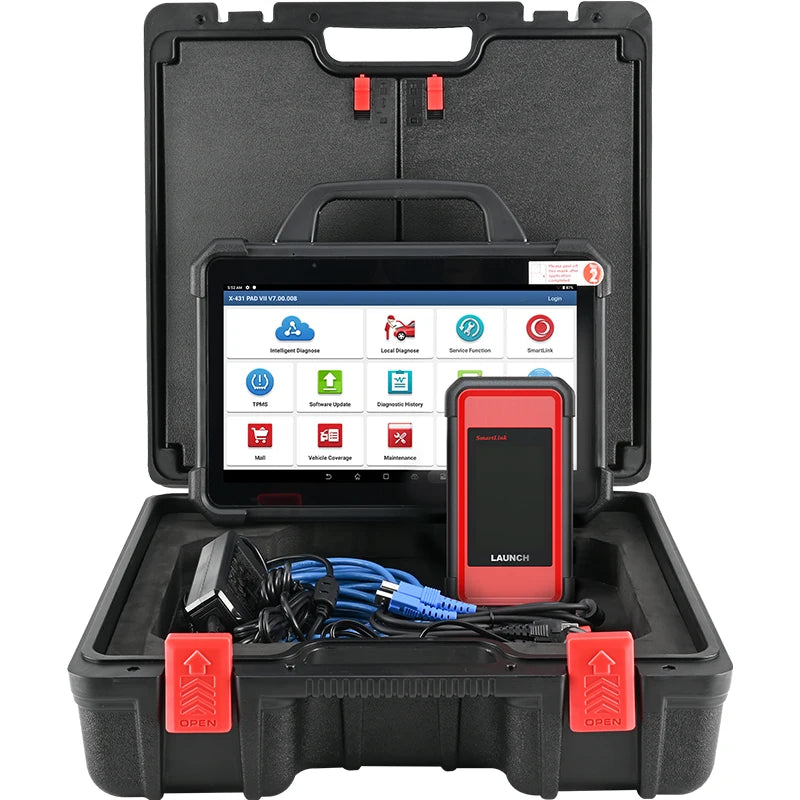

The set includes:

1pc x PADVII tablet
1 pc x SmartLink C
1 pc x B-20 adapter
1 pc x BZ-14 adapter
1 pc x BZ-38 adapter
1 pc x CR-6 adapter
1 pc x FD-6+1 adapter
1pc x GV-12 adapter
1pc x HA-3 adapter
1pc x K-20 adapter
1pc x MH-12+16 adapter
1pc x NN-14+16 adapter
1pc x TA-17 adapter
1 pc x TA-22 adapter
1pc x Battery clamp cable
1 pc x cigarette lighter cable
1 pc x OBD adapter
1 pc x OBD I adapter
1 pc x USB-B cable
1 pc x USB-C cable
1 pc x network cable
1 pc x HDMI cable
1 pc x power adapter
1 pc x Australian standard AC wire
1 pc x UK standard AC wire
1 pc x European standard AC wire
6pcs x lighter fuses
1pc x Packing list
1 pc x Quick Start Guide
1 pc x universal PIN envelope
1 pc x User Manual
1 pc x suitcase
1 pc x box
